00A-001 – Probe Board, 2P

A basic probe board design.

PCB Details

Part No: 00A-001

Title: 00A-001 – Probe Board, 2P

Board Size: Approx. 25 x 20 mm

Pieces per Panel: 20

Panel Size: N/A

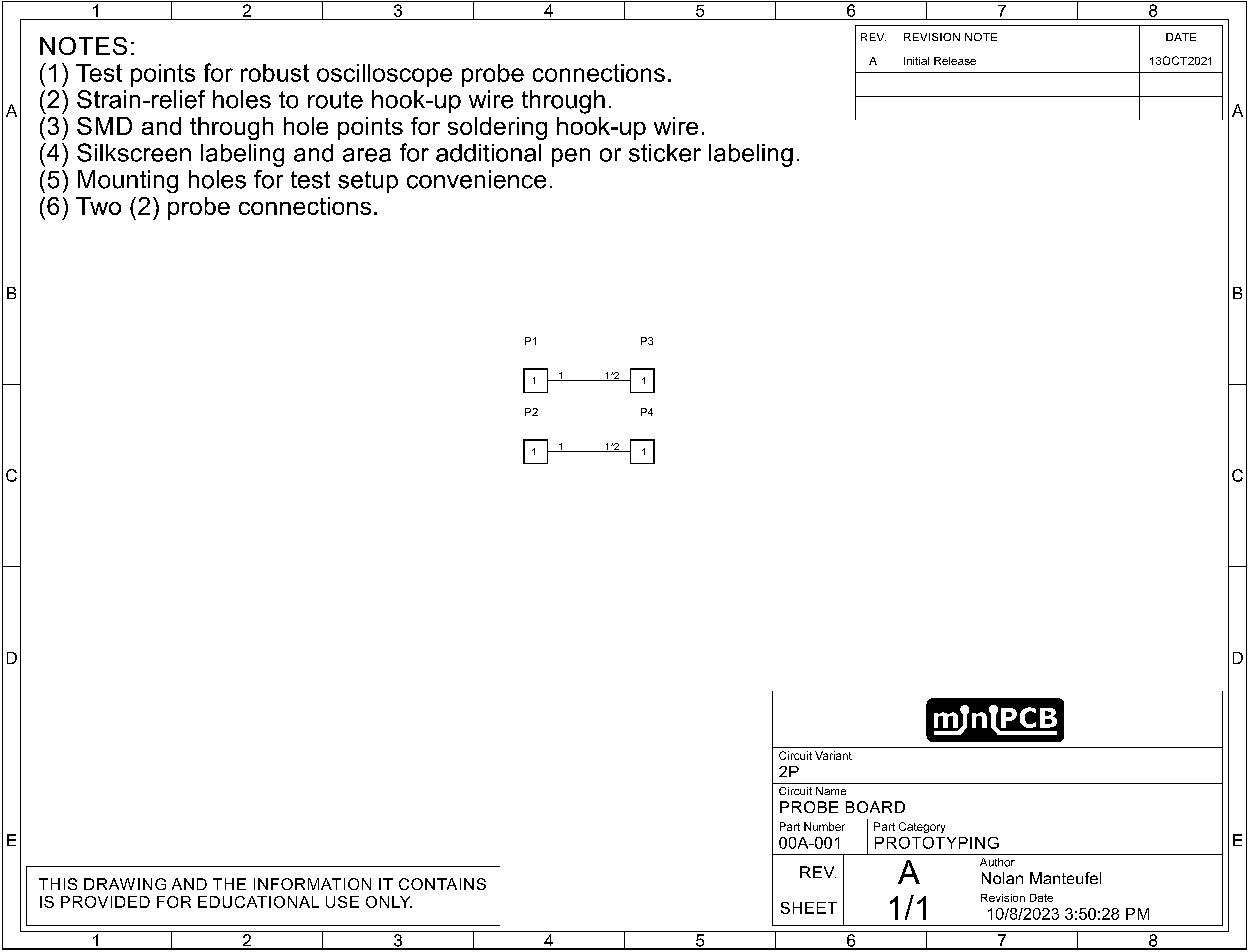

Schematic

Schematic

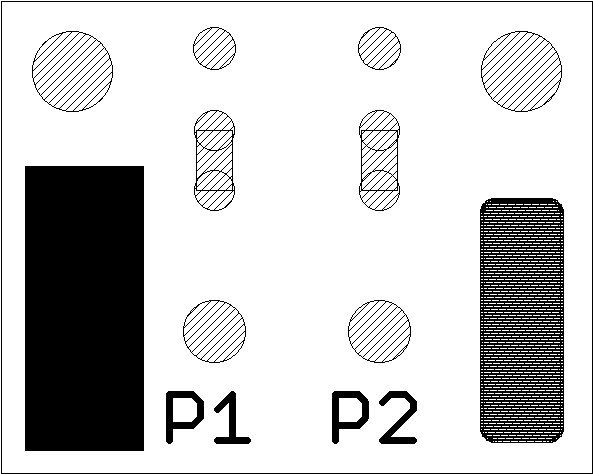

Board Layout

Top view of miniPCB

Coming Soon

We are working on additional resources for this PCB. Please check back later!
