04A-015 – Difference Amplifier

A basic difference amplifier design.

PCB Details

Part No: 04A-015

Title: Difference Amplifier

Board Size: Approx. 50 x 50 mm

Pieces per Panel: 4

Panel Size: 100 x 100 mm (V-scored)

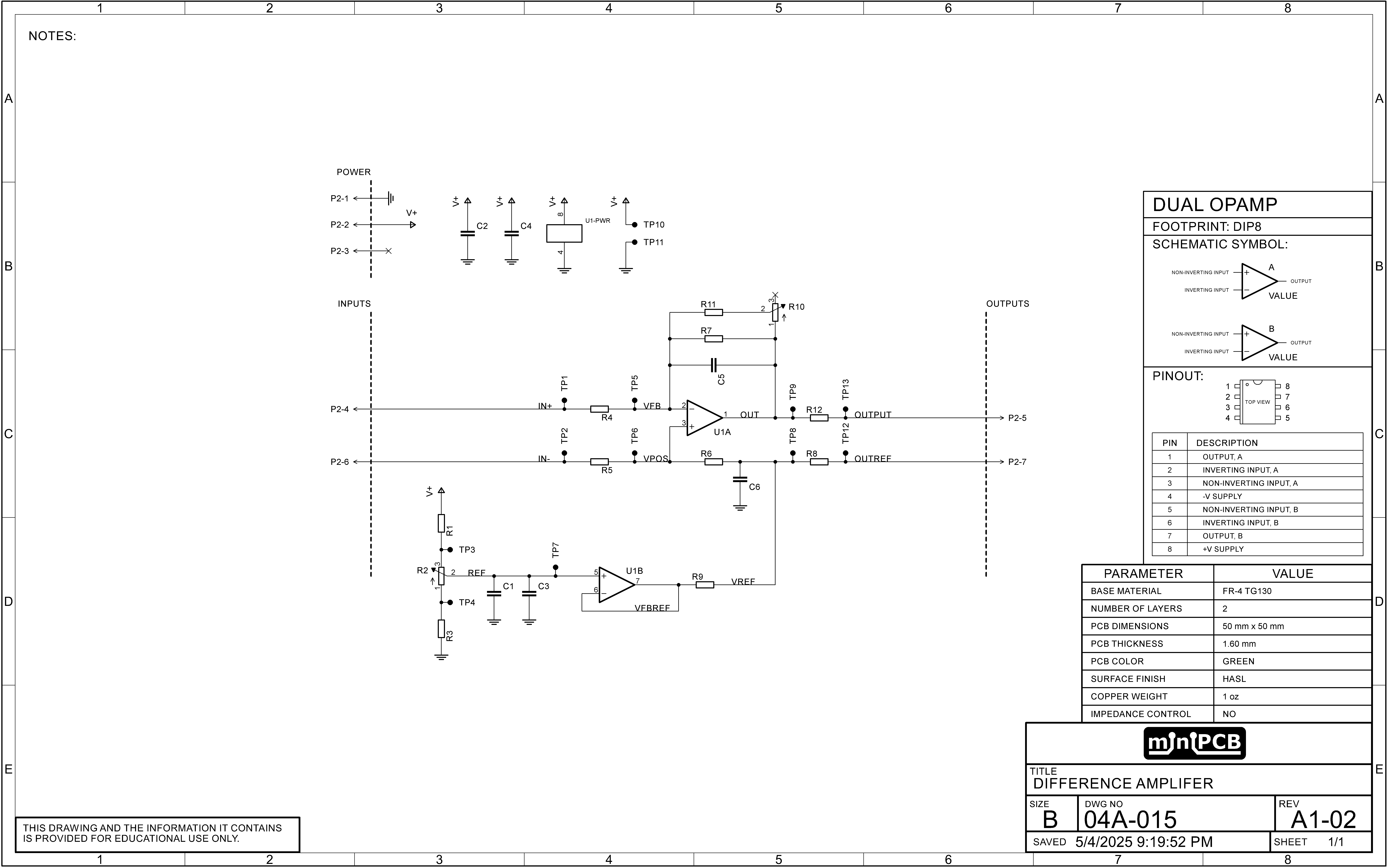

Schematic

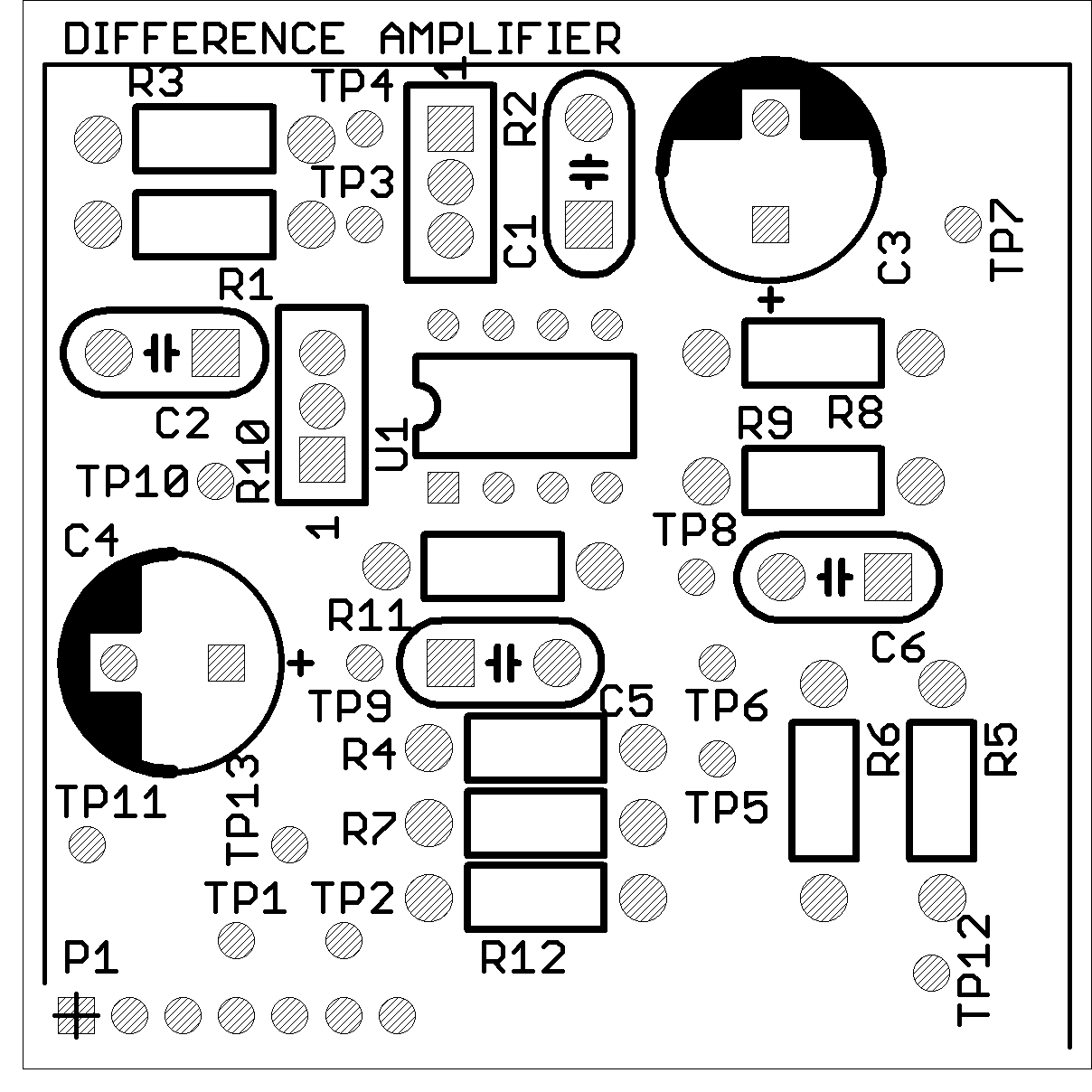

Board Layout

Top view of miniPCB

Coming Soon

We are working on additional resources for this PCB. Please check back later!
