PCB Details
Part No: 04B-020
Title: Push-Pull Amplifier
Board Size: Approx. 50 x 25 mm
Pieces per Panel: 8
Panel Size: 100 x 100 mm (V-scored)

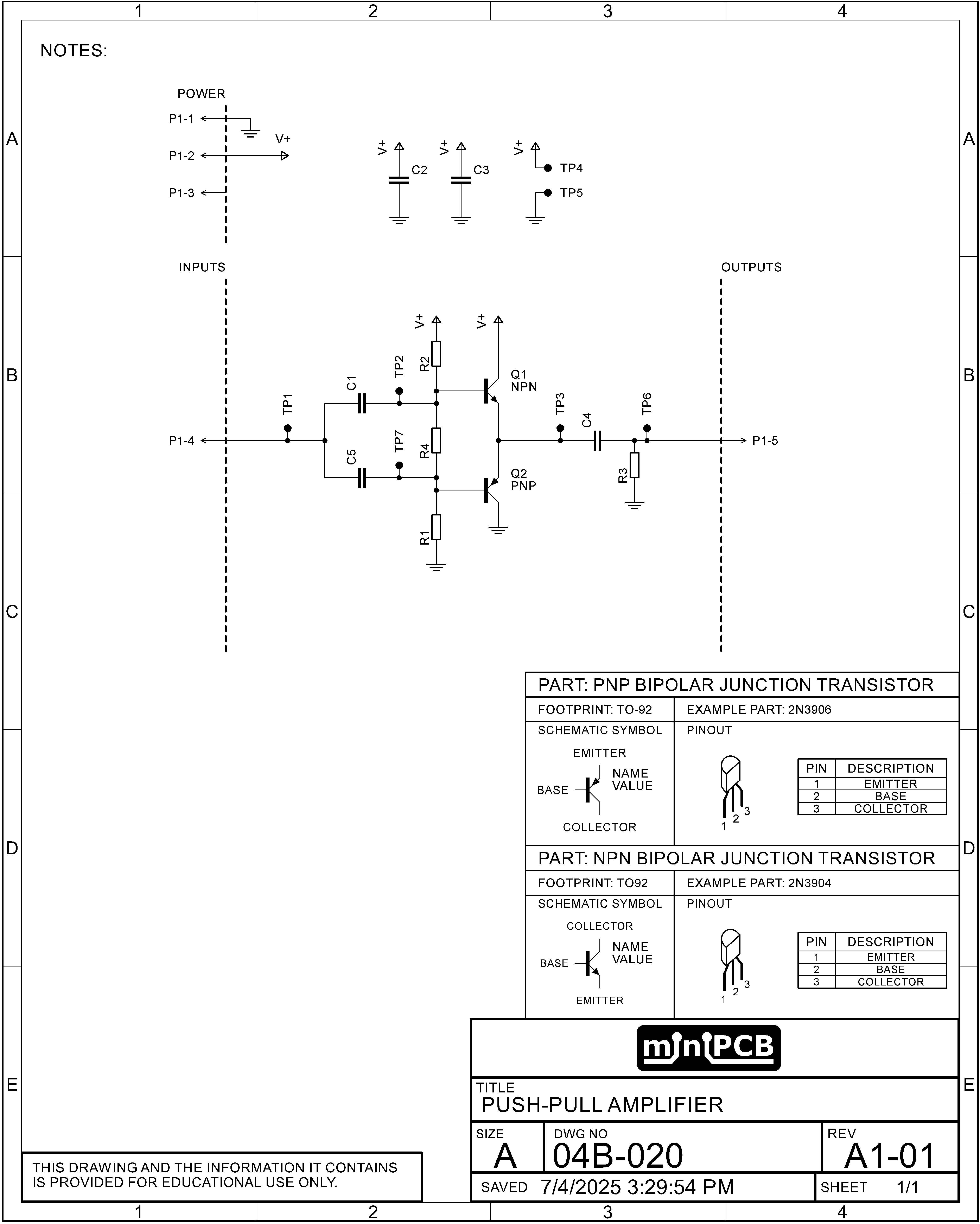

Schematic

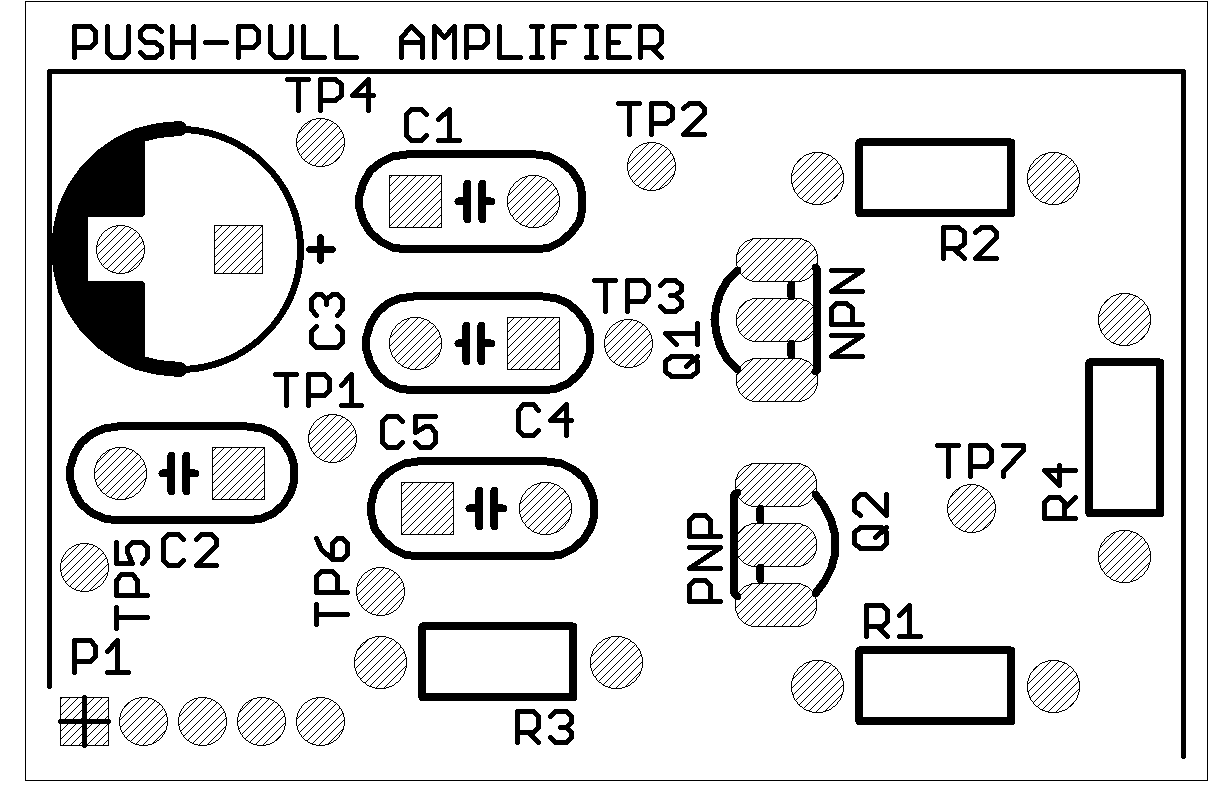

Board Layout
A foundational BJT amplifier for teaching gain, biasing, and small-signal response.
Part No: 04B-020
Title: Push-Pull Amplifier
Board Size: Approx. 50 x 25 mm
Pieces per Panel: 8
Panel Size: 100 x 100 mm (V-scored)
