04B-360 – Differential Amplifier

Load Resistors, No Emitter Resistors, DC Coupled Output, Double Ended Output

PCB Details

Part No: 04B-360

Title: Differential Amplifier

Board Size: Approx. 50 x 50 mm

Pieces per Panel: 4

Panel Size: 100 x 100 mm (V-scored)

Simulation

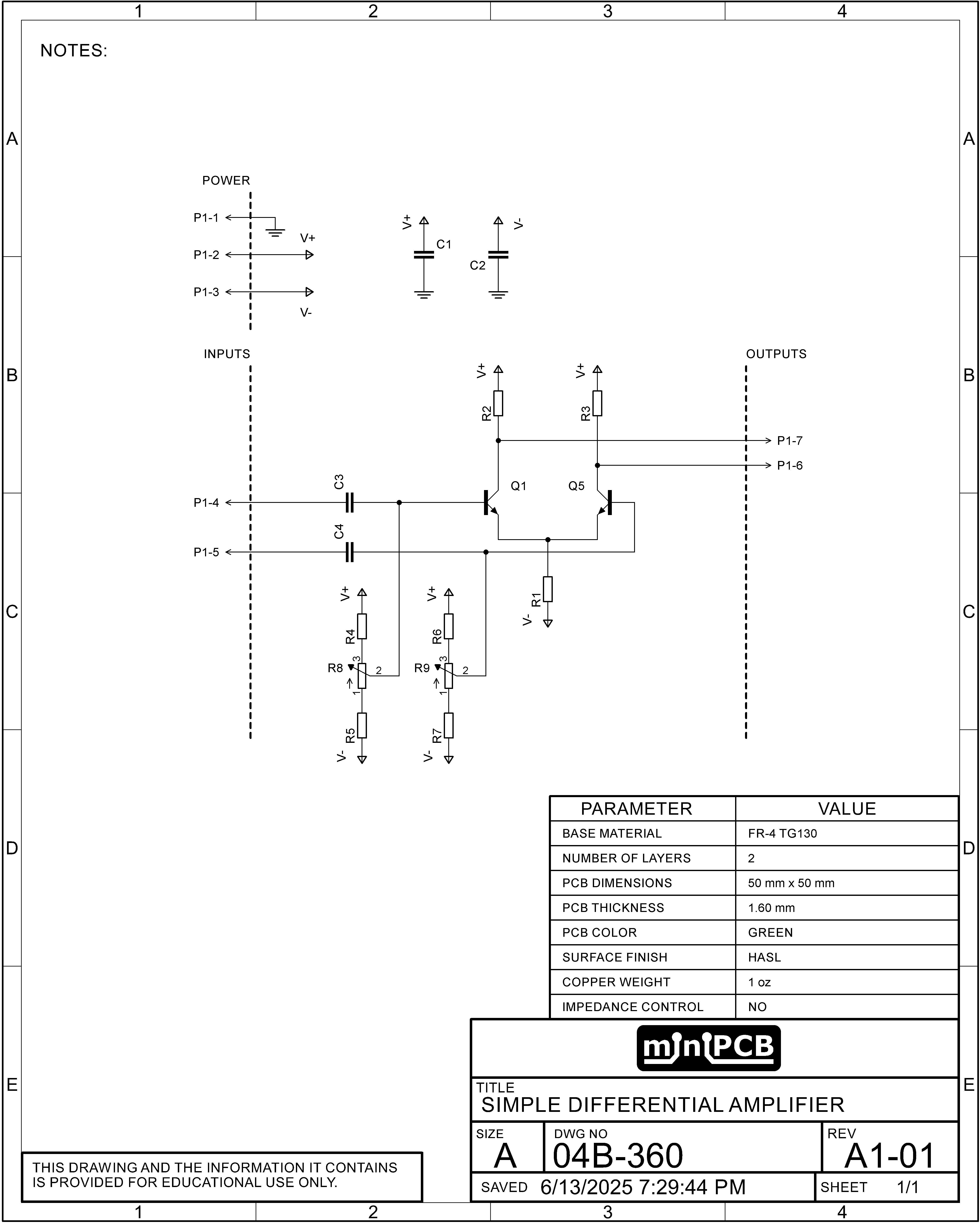

Schematic

Schematic

Board Layout

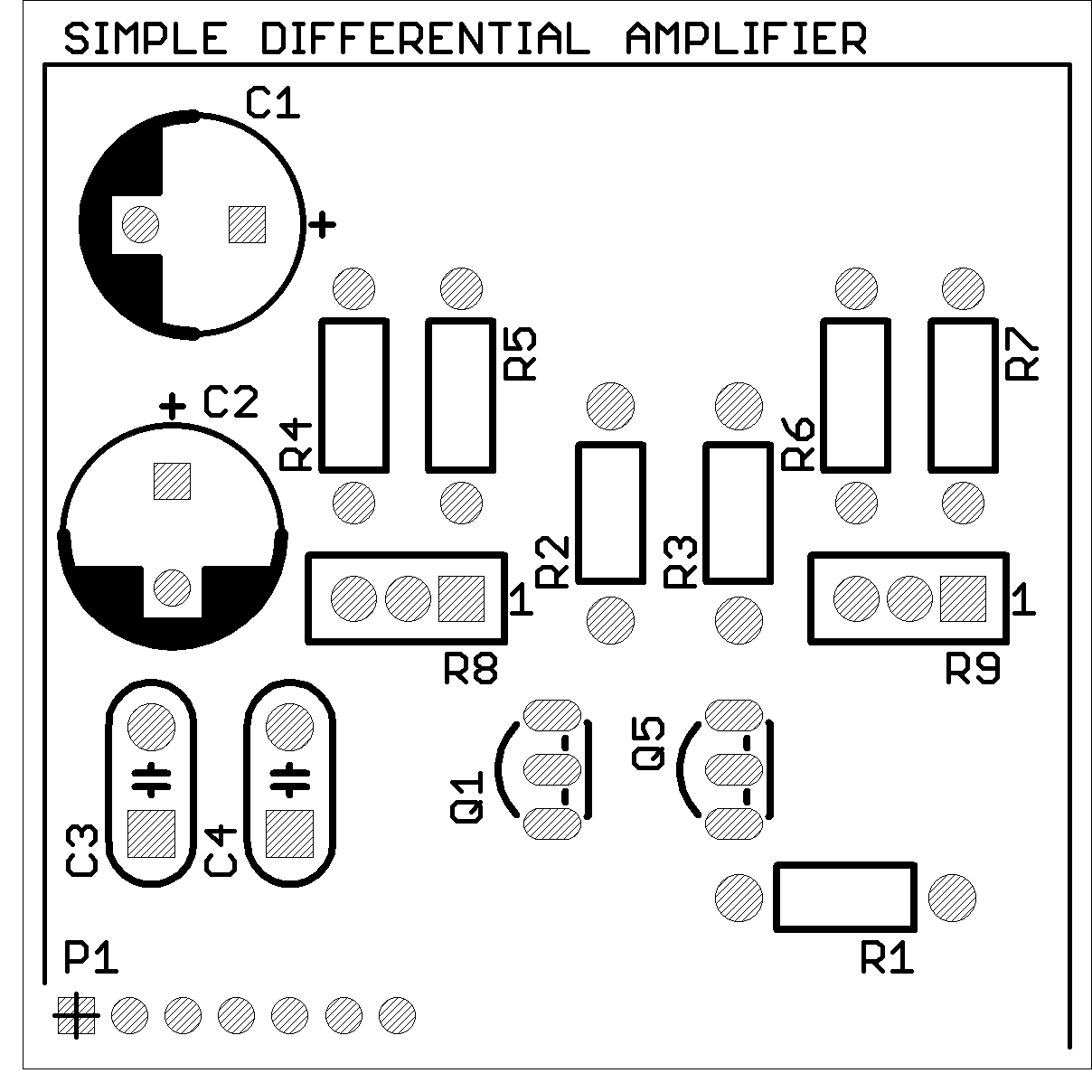

Top view of miniPCB
