05B-07 – Single Feedback High Pass

A basic single feedback high pass filter design.

Details

Part No: 05B-07

Title: Single Feedback High Pass

Board Size: Approx. 50 x 50 mm

Pieces per Panel: 4

Panel Size: 100 x 100 mm (V-scored)

Description

AI Seed

AI Generated

Videos

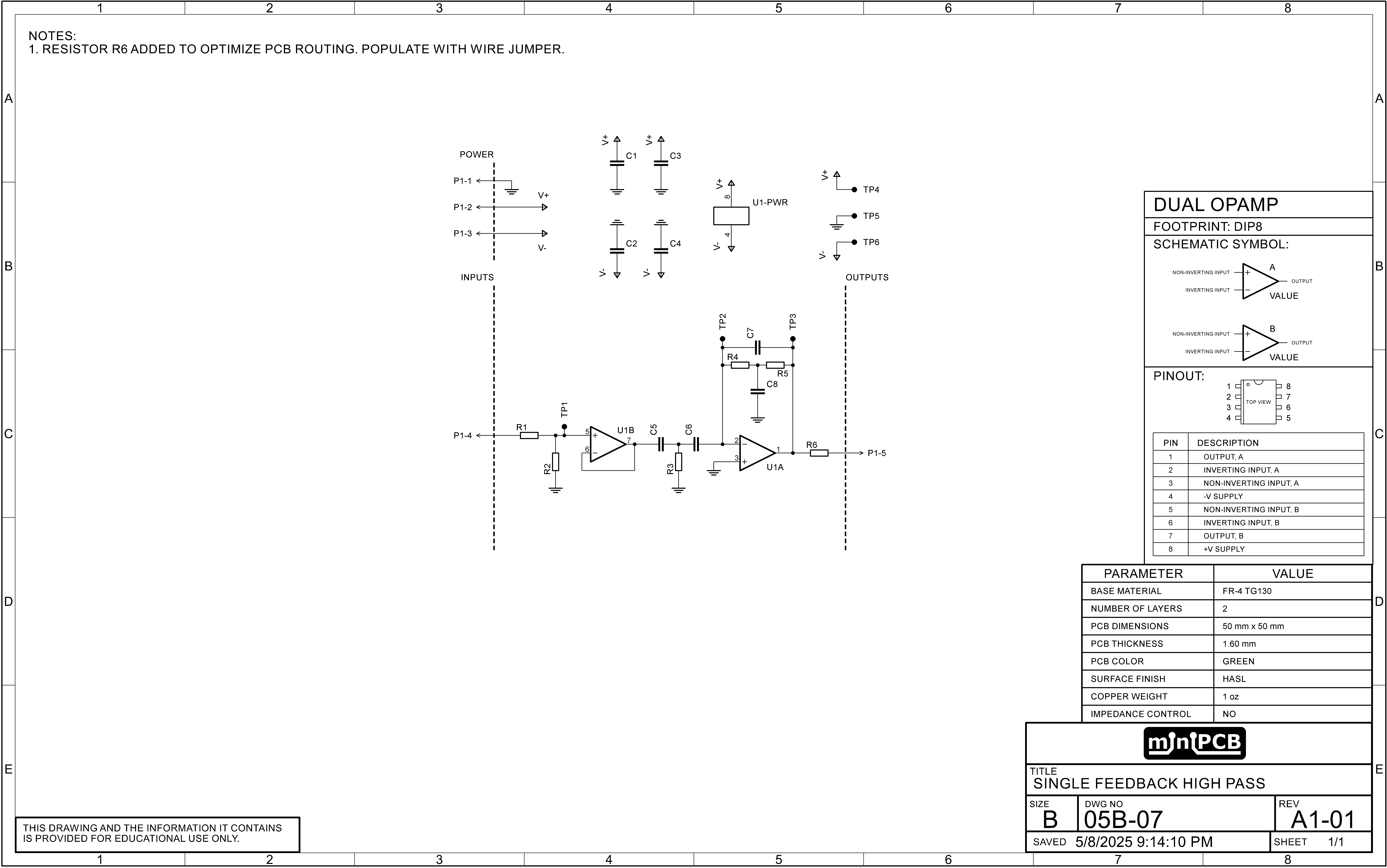

Schematic

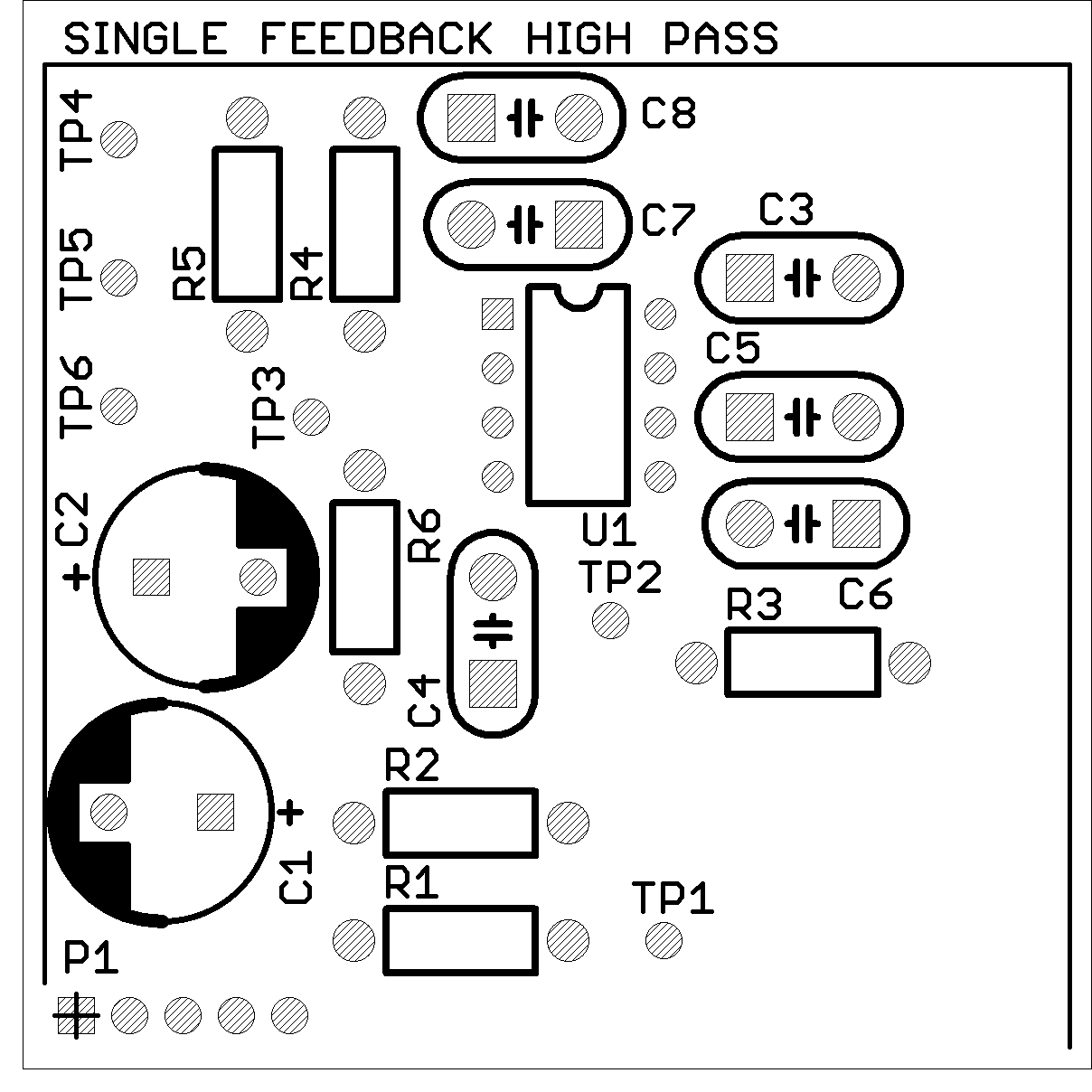

Layout
