PCB Details
Part No: 06A-05
Title: Colpitts Oscillator
Board Size: Approx. 50 x 50 mm
Pieces per Panel: 4
Panel Size: 100 x 100 mm (V-scored)
Simulation

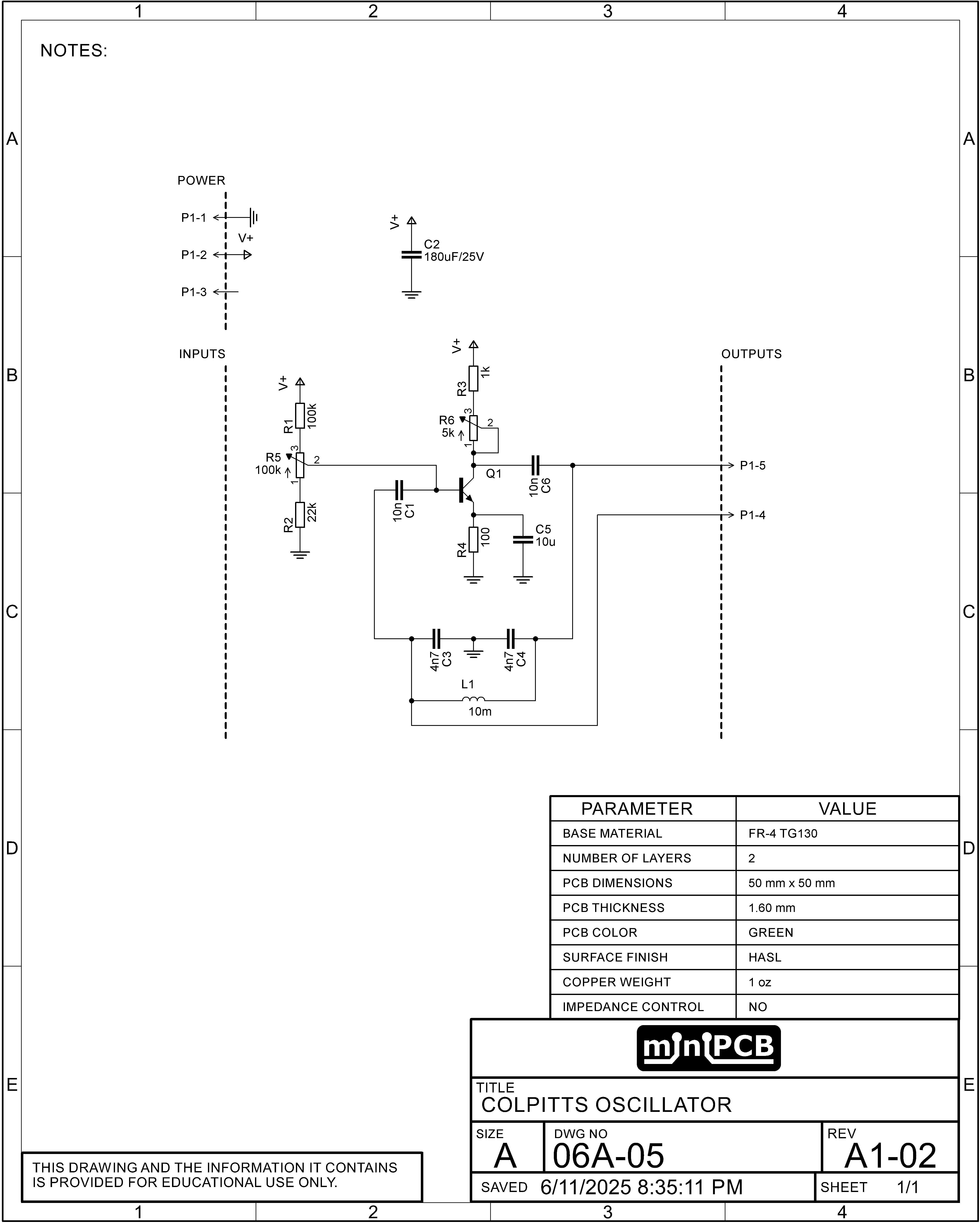

Schematic

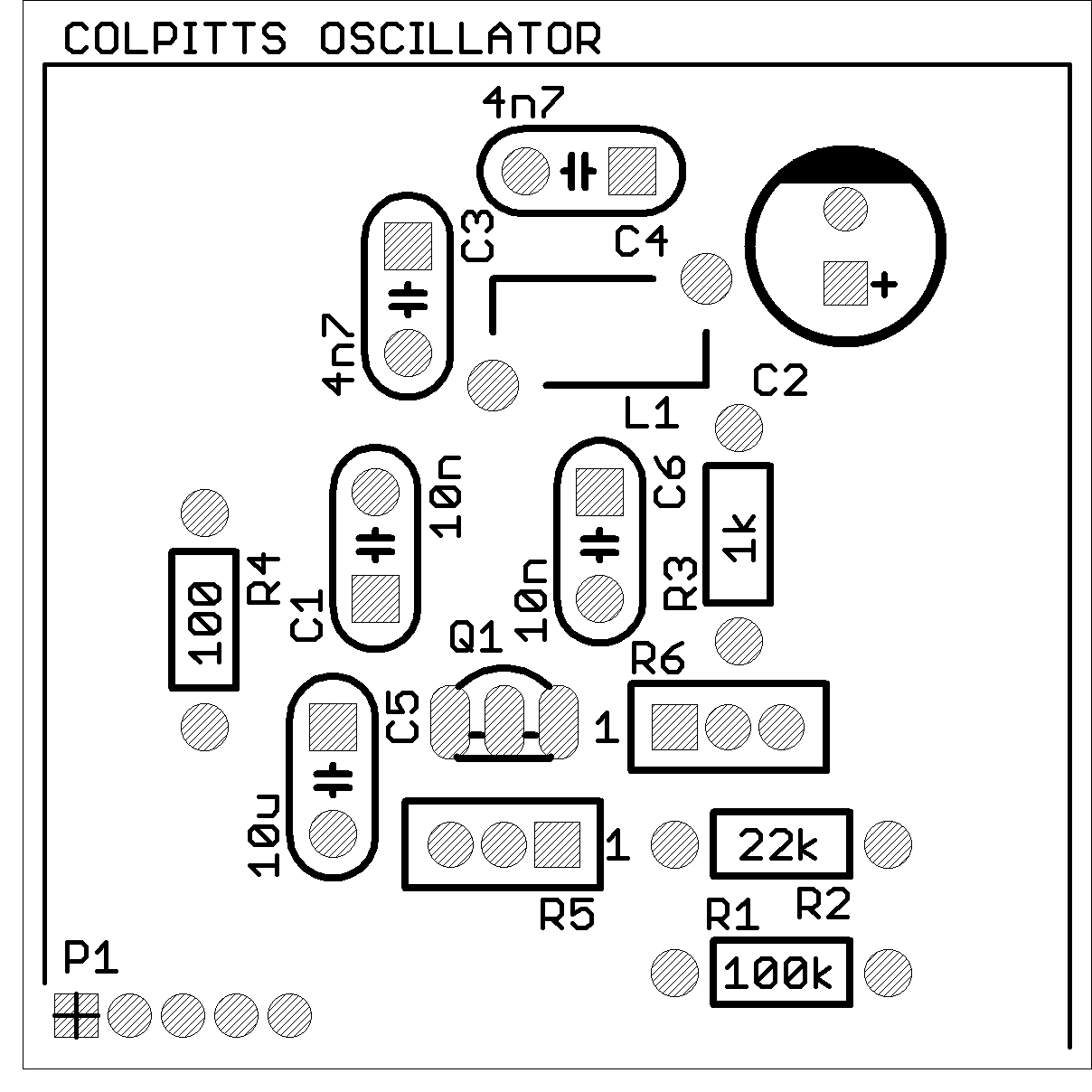

Board Layout
A classic oscillator design using a Colpitts configuration.
Part No: 06A-05
Title: Colpitts Oscillator
Board Size: Approx. 50 x 50 mm
Pieces per Panel: 4
Panel Size: 100 x 100 mm (V-scored)
