PCB Details
Part No: 06B-10
Title: Adjustable 555 Timer Oscillator
Board Size: Approx. 50 x 50 mm
Pieces per Panel: 4
Panel Size: 100 x 100 mm (V-scored)
Schematic

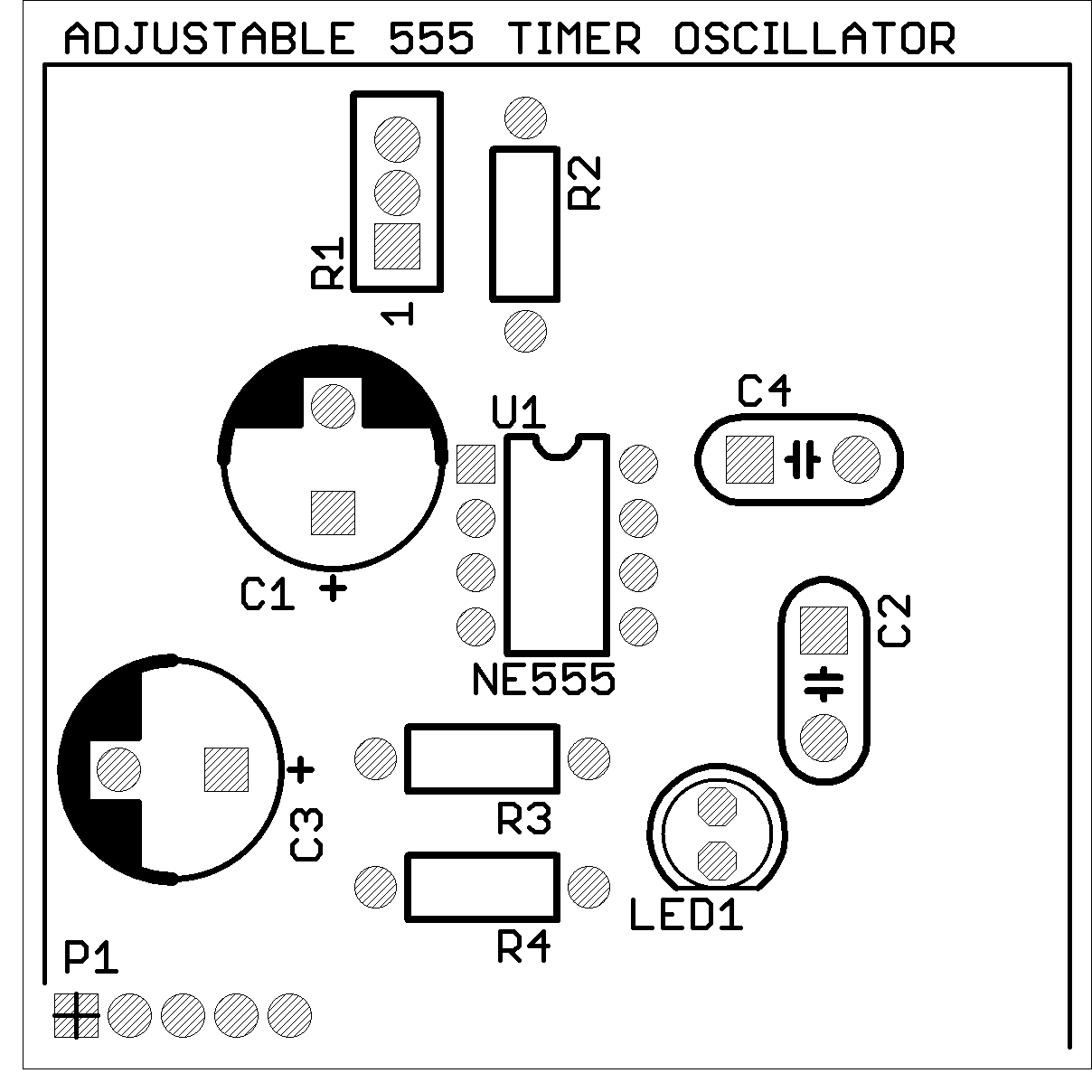

Board Layout
A classic oscillator design using a 555 timer configuration.
Part No: 06B-10
Title: Adjustable 555 Timer Oscillator
Board Size: Approx. 50 x 50 mm
Pieces per Panel: 4
Panel Size: 100 x 100 mm (V-scored)
