PCB Details
Part No: 09D-10
Title: 120 VAC Power Input Circuit
Board Size: Approx. 100 x 33 mm
Pieces per Panel: 3
Panel Size: 100 x 99 mm (V-scored)

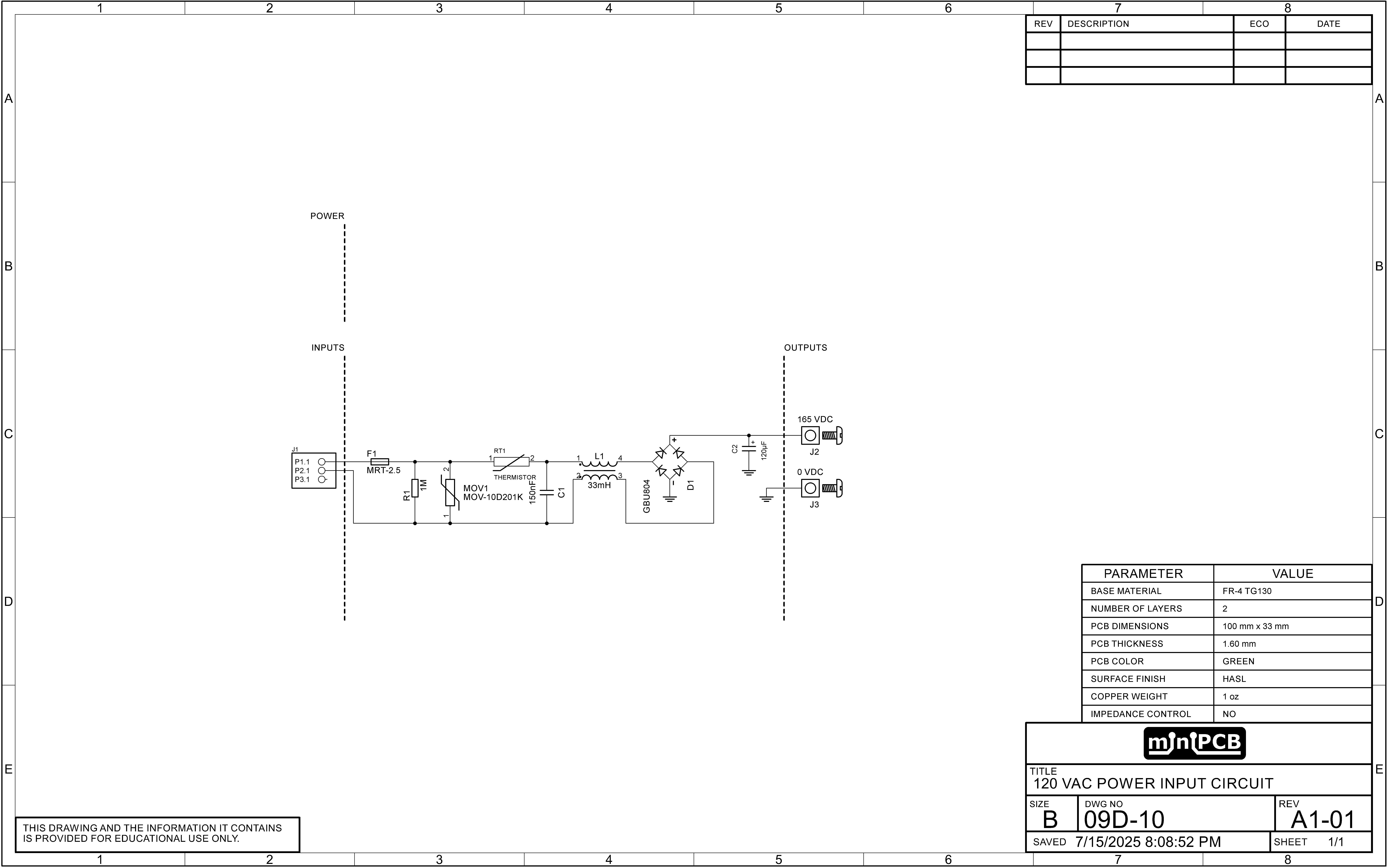

Schematic

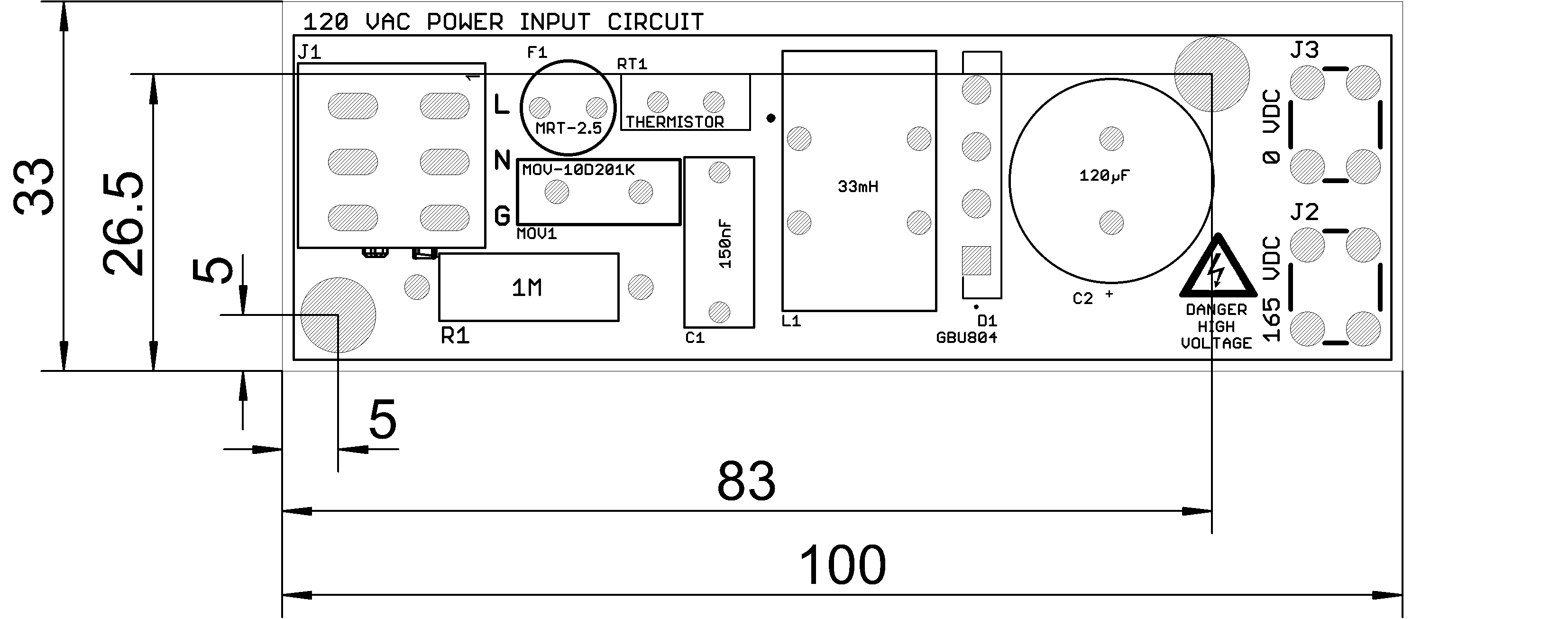

Board Layout
A foundational circuit for teaching AC power input concepts.
Part No: 09D-10
Title: 120 VAC Power Input Circuit
Board Size: Approx. 100 x 33 mm
Pieces per Panel: 3
Panel Size: 100 x 99 mm (V-scored)
