PCB Details
Part No: 09D-15
Title: 120 VAC Step-Down Transformer
Board Size: Approx. 100 x 50 mm
Pieces per Panel: 2
Panel Size: 100 x 100 mm (V-scored)

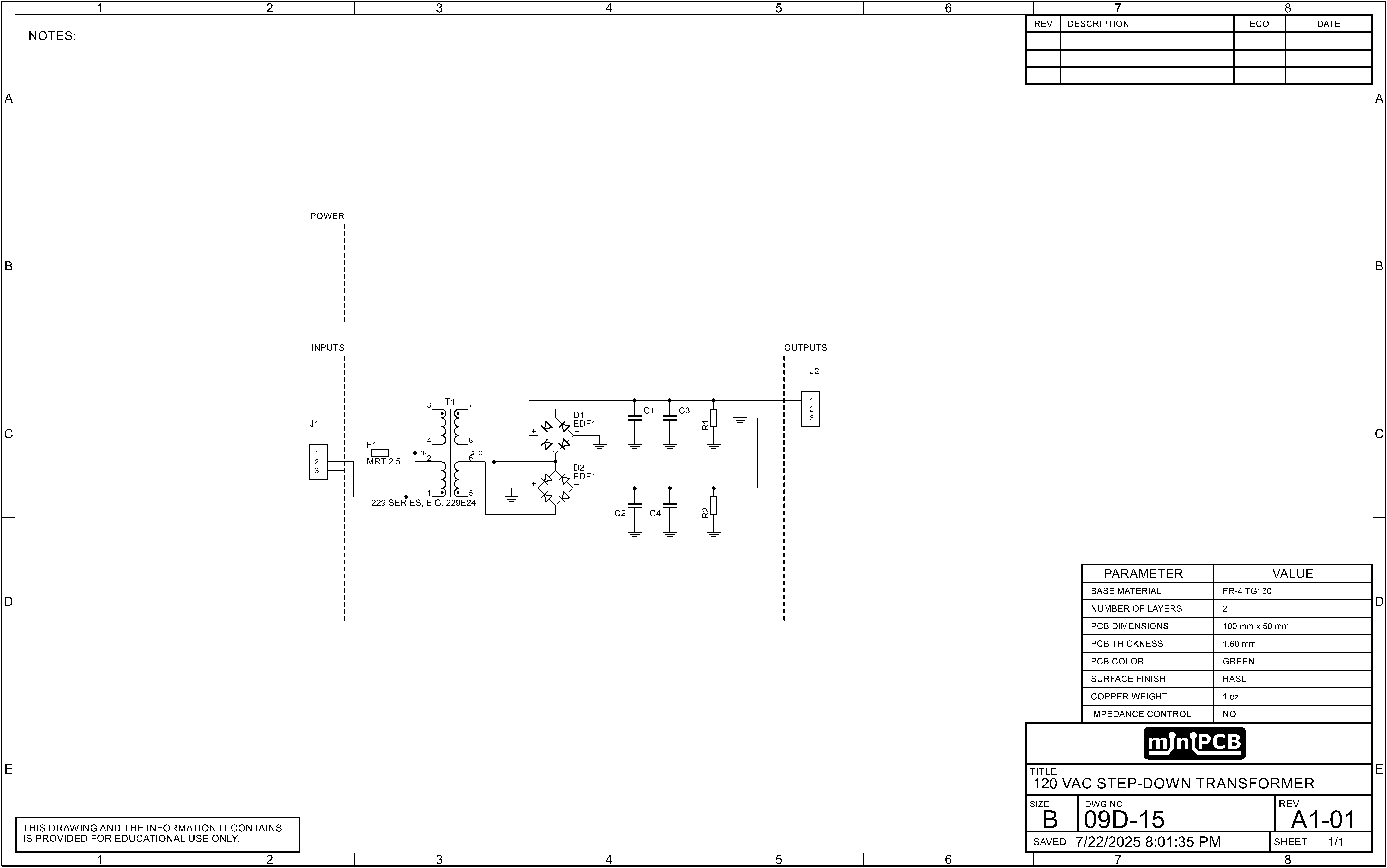

Schematic

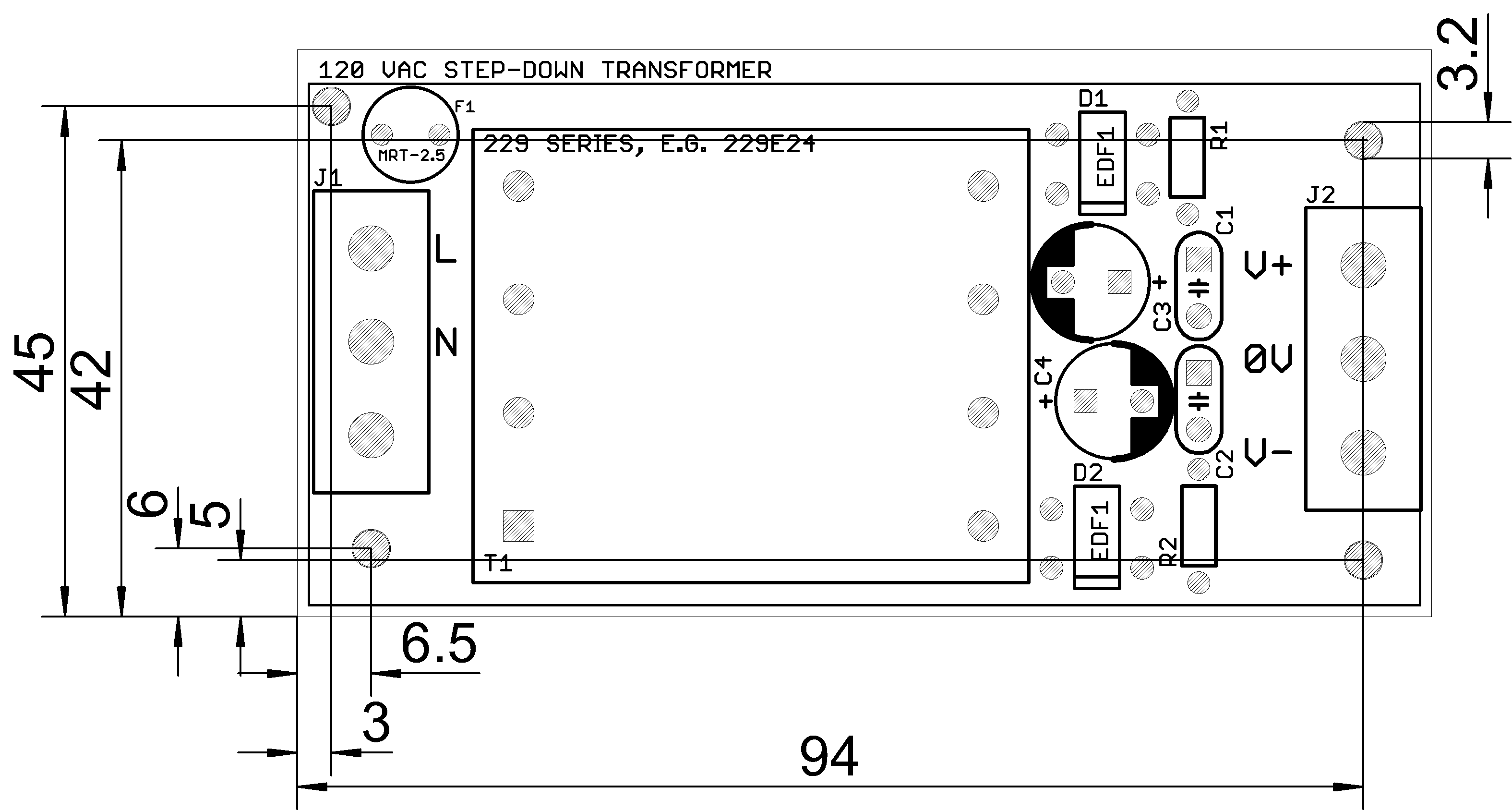

Board Layout
A foundational circuit for teaching AC to DC concepts.
Part No: 09D-15
Title: 120 VAC Step-Down Transformer
Board Size: Approx. 100 x 50 mm
Pieces per Panel: 2
Panel Size: 100 x 100 mm (V-scored)
