10A-10 – Pulse Generator

PCB Details

Part No: 10A-10

Title: Pulse Generator

Board Size: Approx. 50 x 33 mm

Pieces per Panel: 6

Panel Size: 100 x 100 mm (V-scored)

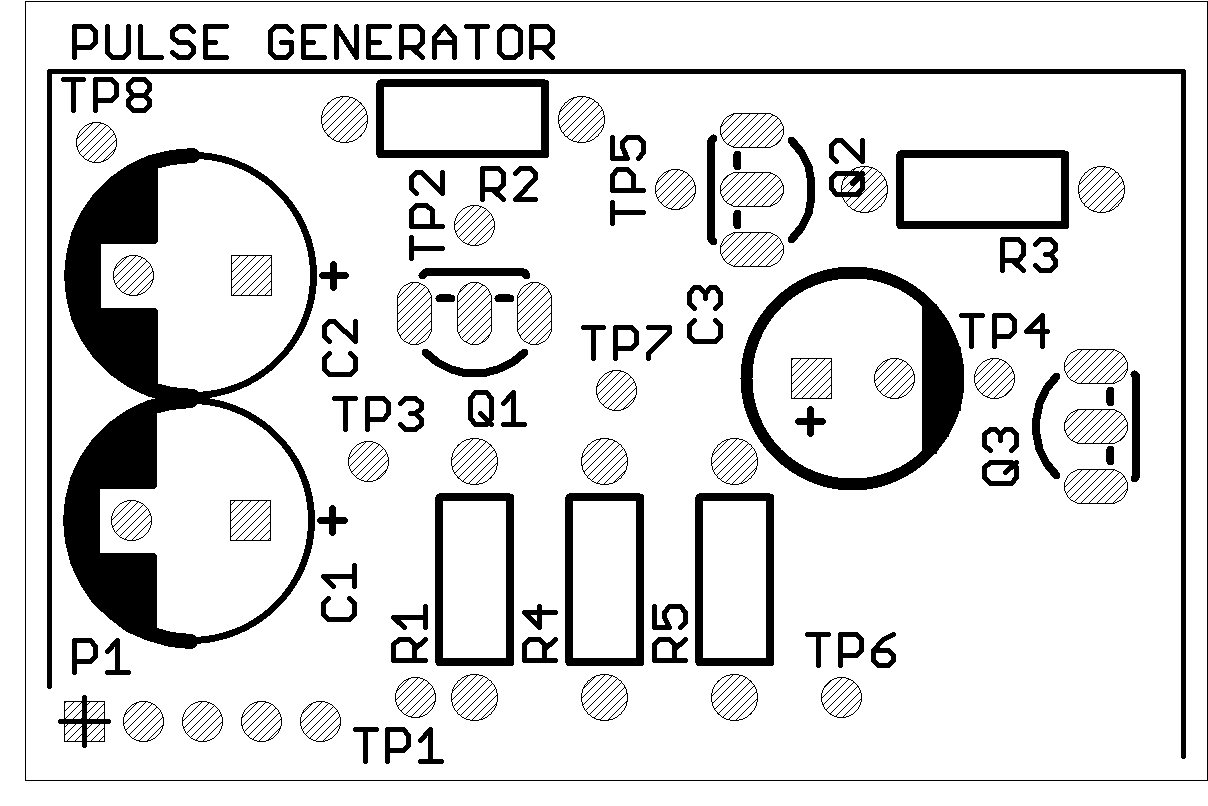

Board Layout

Downloads

• LTspice File (.asc)

Coming Soon

We are working on additional resources for this PCB. Please check back later!
