Details
Part No: 10A-20
Title: D Flip-Flop
Board Size: Approx. 50 x 33 mm
Pieces per Panel: 6
Panel Size: 100 x 99 mm (V-scored)
Description
AI Seed
AI Generated
Videos

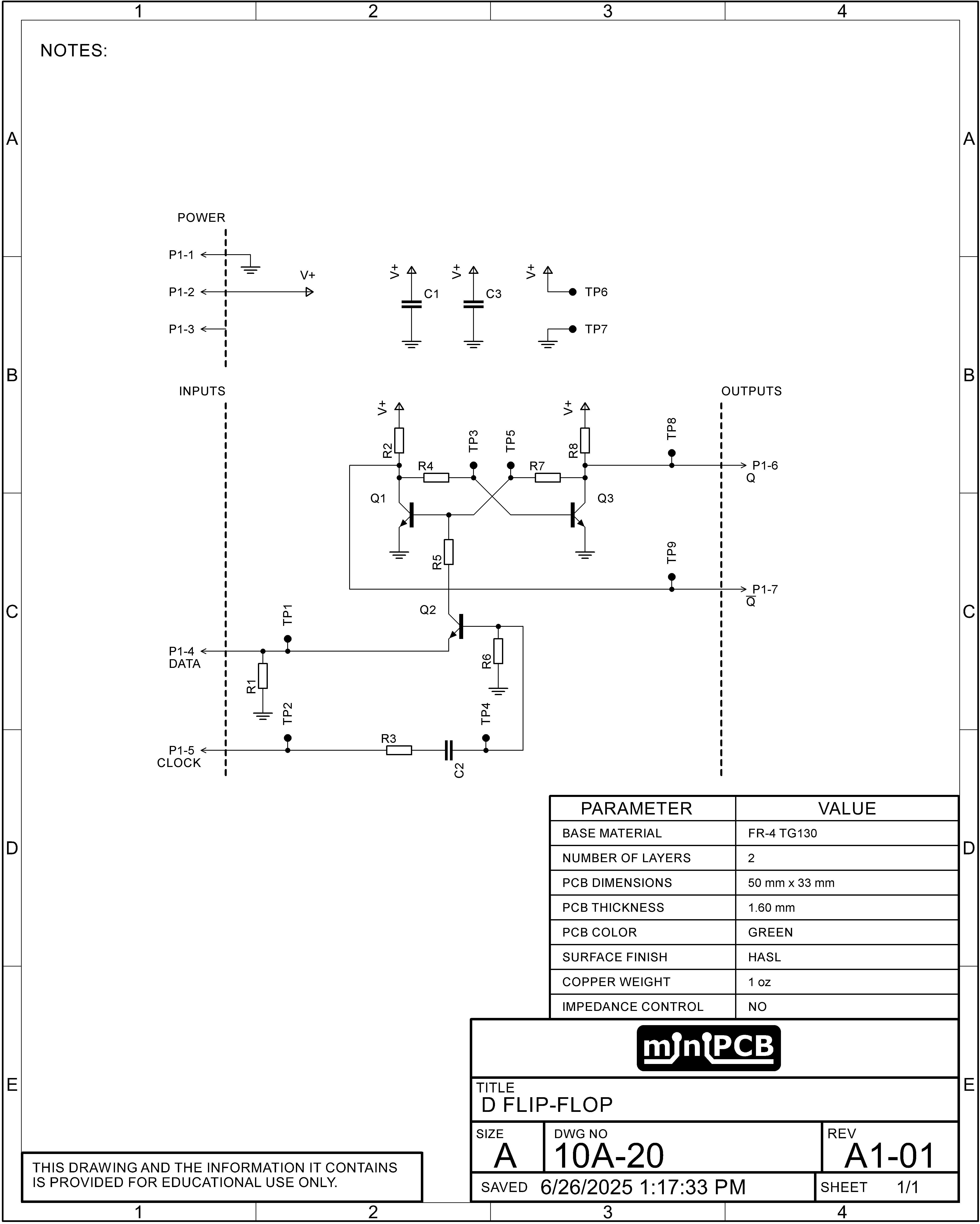

Schematic

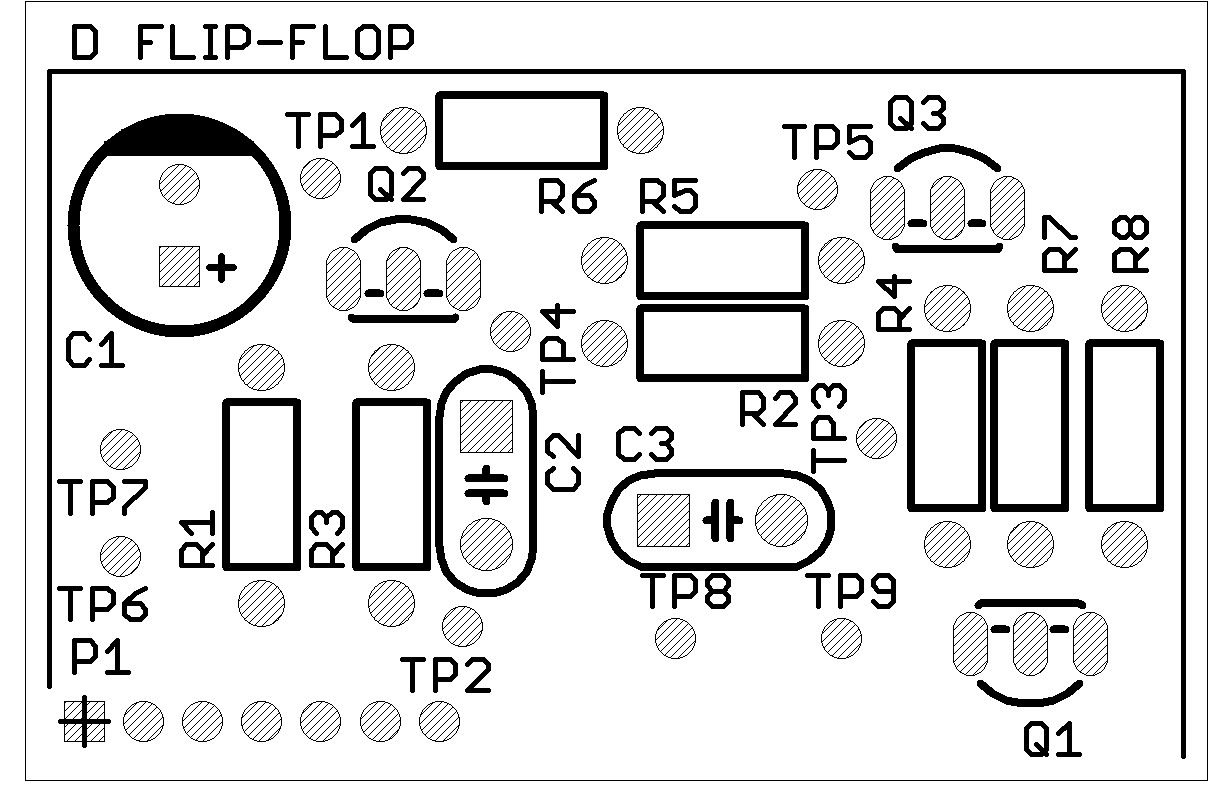

Layout
A circuit that updates the output, at the clock's rising edge, to match the data input.
Part No: 10A-20
Title: D Flip-Flop
Board Size: Approx. 50 x 33 mm
Pieces per Panel: 6
Panel Size: 100 x 99 mm (V-scored)
