Details
Part No: 10A-25
Title: T Flip-Flop
Board Size: Approx. 50 x 50 mm
Pieces per Panel: 4
Panel Size: 100 x 100 mm (V-scored)
Description
AI Seed
AI Generated
Videos
Schematic

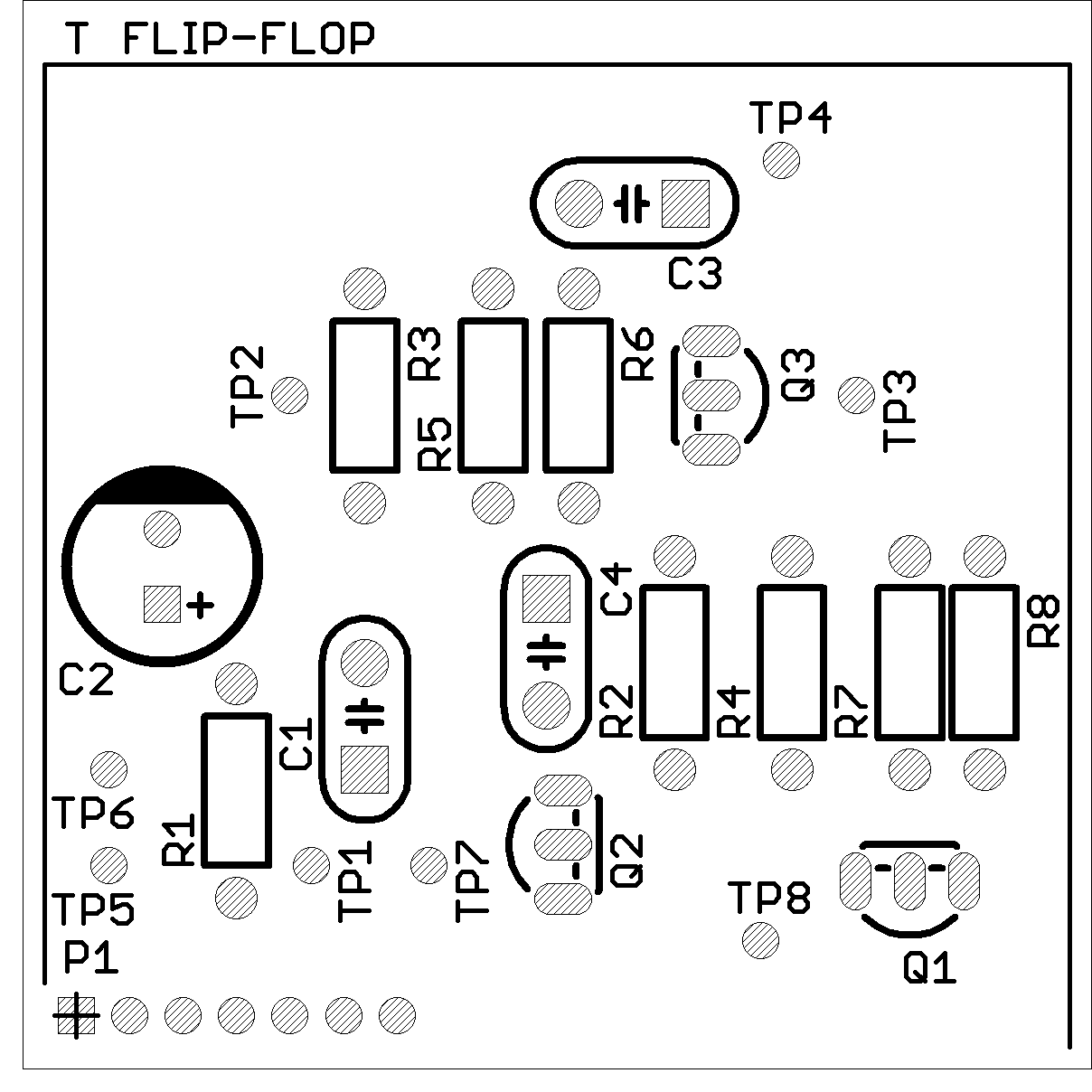

Layout
A circuit that toggles the output, at the clock's rising edge.
Part No: 10A-25
Title: T Flip-Flop
Board Size: Approx. 50 x 50 mm
Pieces per Panel: 4
Panel Size: 100 x 100 mm (V-scored)
