PCB Details
Part No: 09A-14
Title: Pass Regulator
Board Size: Approx. 20 x 20 mm
Pieces per Panel: 25
Panel Size: 100 x 100 mm (V-scored)

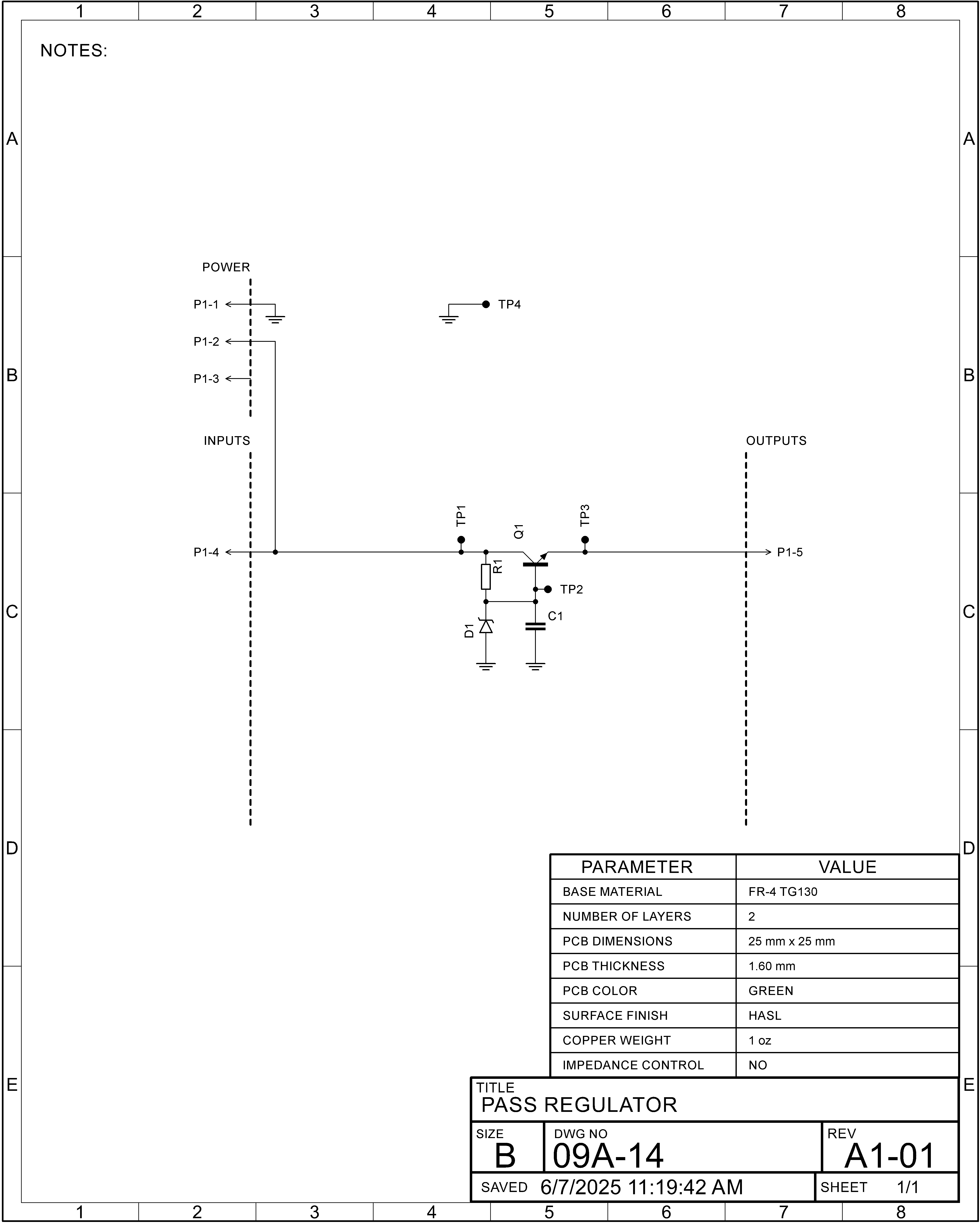

Schematic

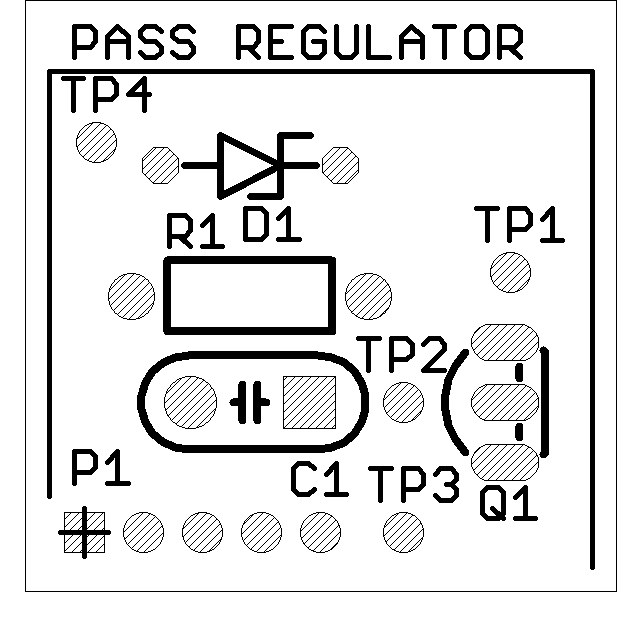

Board Layout
Downloads
Coming Soon
We are working on additional resources for this PCB. Please check back later!
