PCB Details
Part No: 09H-12
Title: Boost (Step-Up) Converter (MC34063)
Board Size: Approx. 50 x 50 mm
Pieces per Panel: 4
Panel Size: 100 x 100 mm (V-scored)

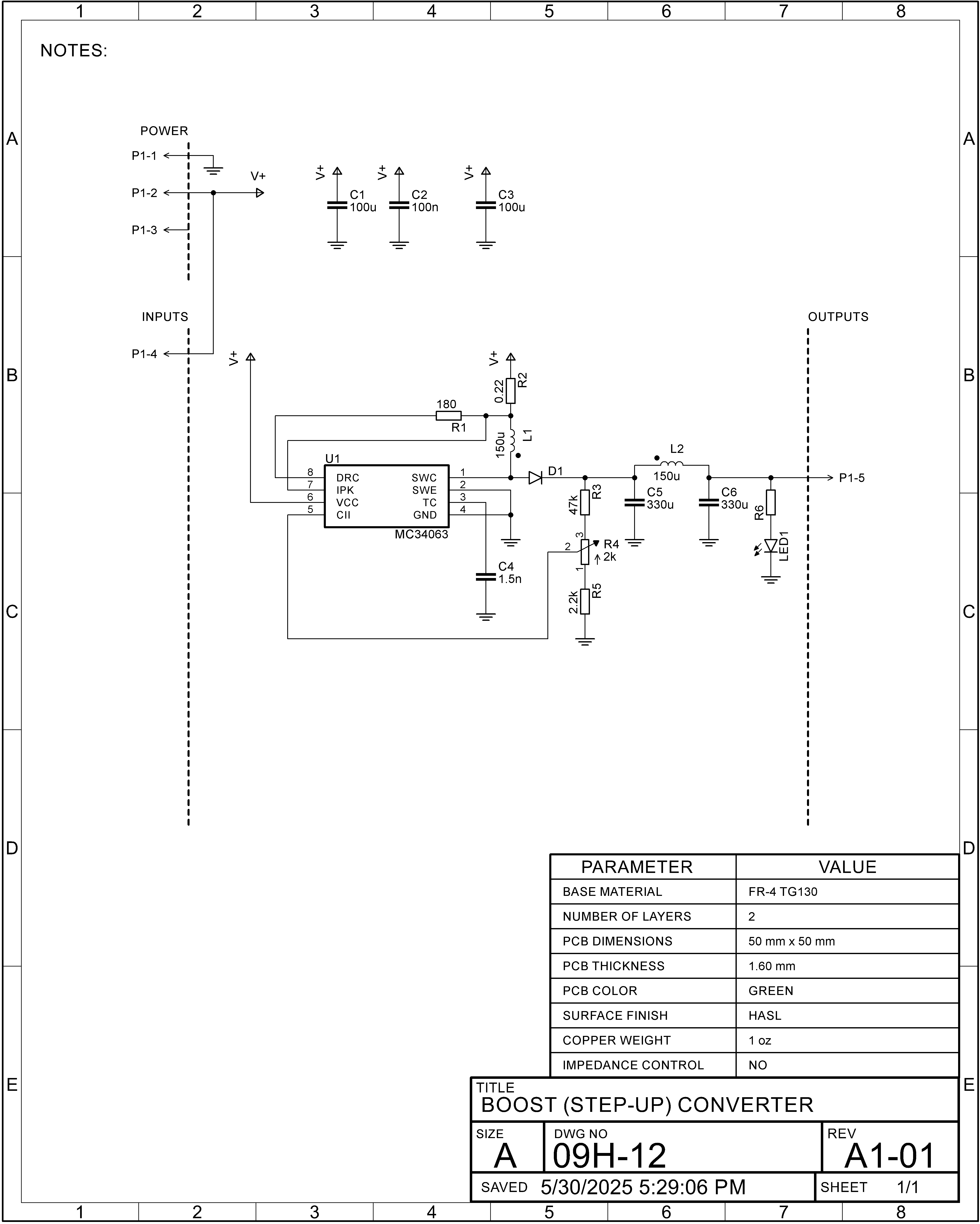

Schematic
Board Layout
Coming Soon
We are working on additional resources for this PCB. Please check back later!
Coming Soon
We are working on additional resources for this PCB. Please check back later!
