09H-14 – Voltage Inverter (MC34063)

A compact voltage inverter design for efficient voltage step-down applications.

PCB Details

Part No: 09H-14

Title: Voltage Inverter (MC34063)

Board Size: Approx. 50 x 50 mm

Pieces per Panel: 4

Panel Size: 100 x 100 mm (V-scored)

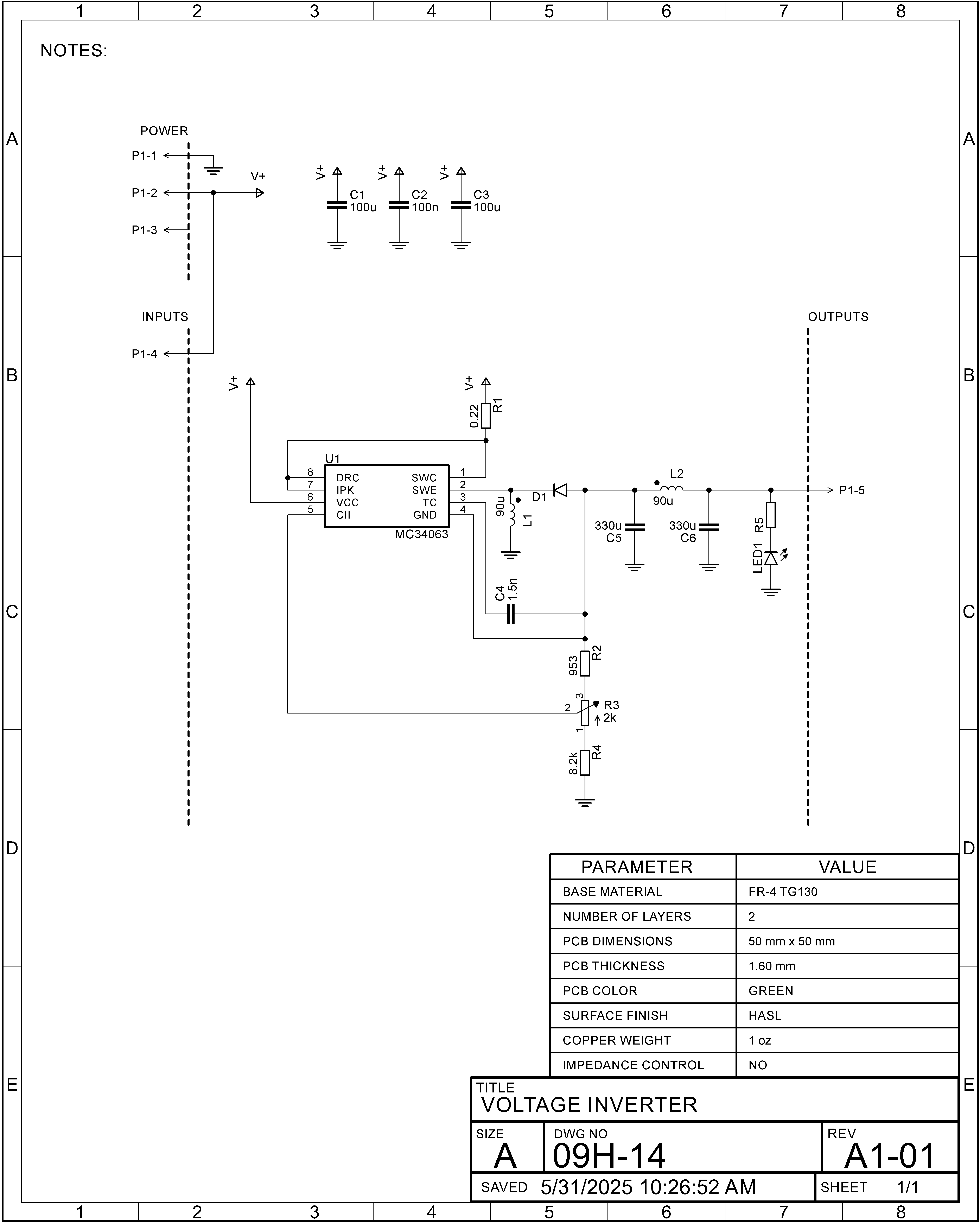

Schematic

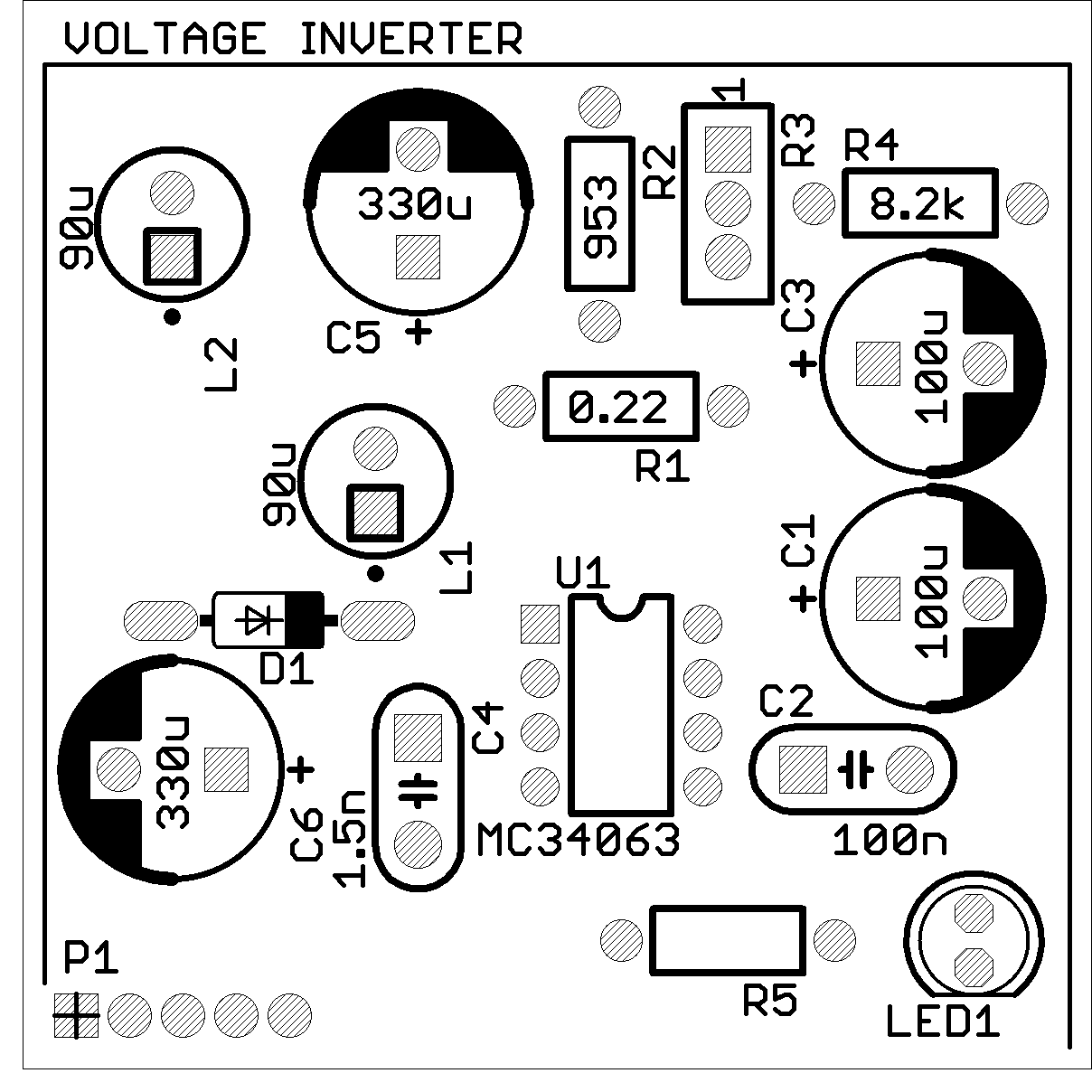

Board Layout

Top view of miniPCB

Coming Soon

We are working on additional resources for this PCB. Please check back later!

Coming Soon

We are working on additional resources for this PCB. Please check back later!
