PCB Details
Part No: 09H-16
Title: Discrete Buck Converter
Board Size: Approx. 75 x 50 mm
Pieces per Panel: 2
Panel Size: 75 x 100 mm (V-scored)

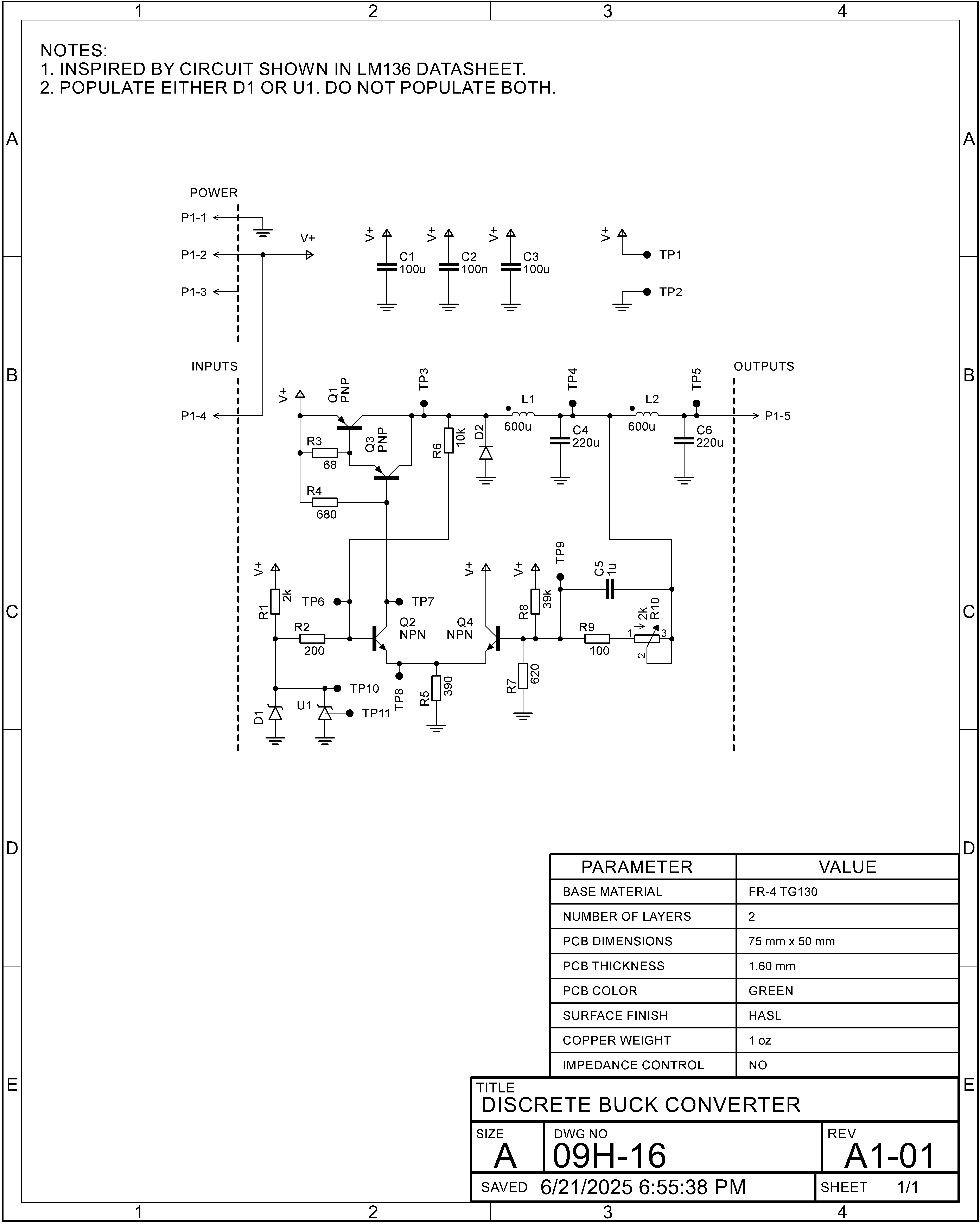

Schematic

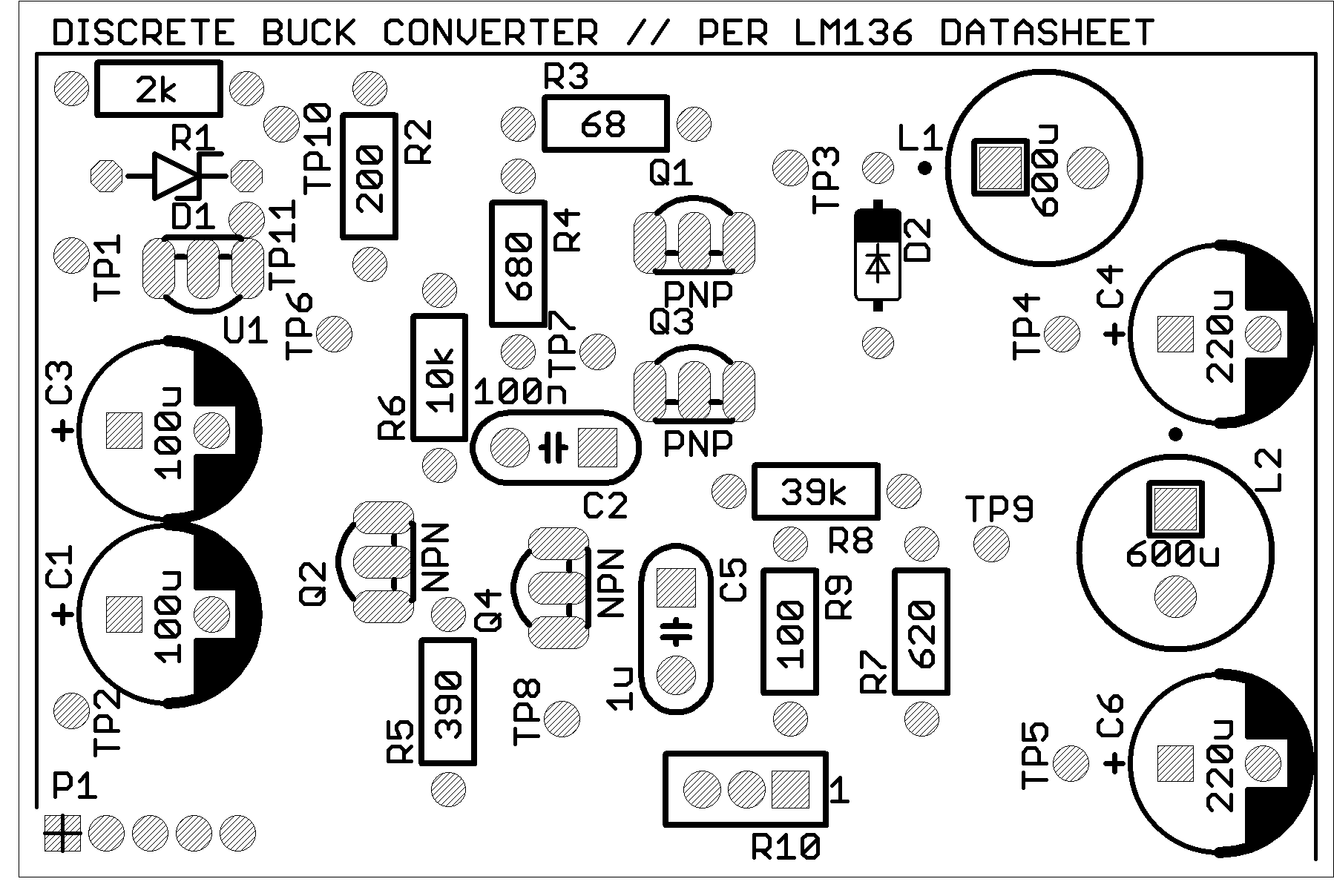

Board Layout
Coming Soon
We are working on additional resources for this PCB. Please check back later!
Coming Soon
We are working on additional resources for this PCB. Please check back later!
