PCB Details
Part No: 09H-17
Title: Discrete Boost Converter
Board Size: Approx. 50 x 33 mm
Pieces per Panel: 6
Panel Size: 100 x 99 mm (V-scored)

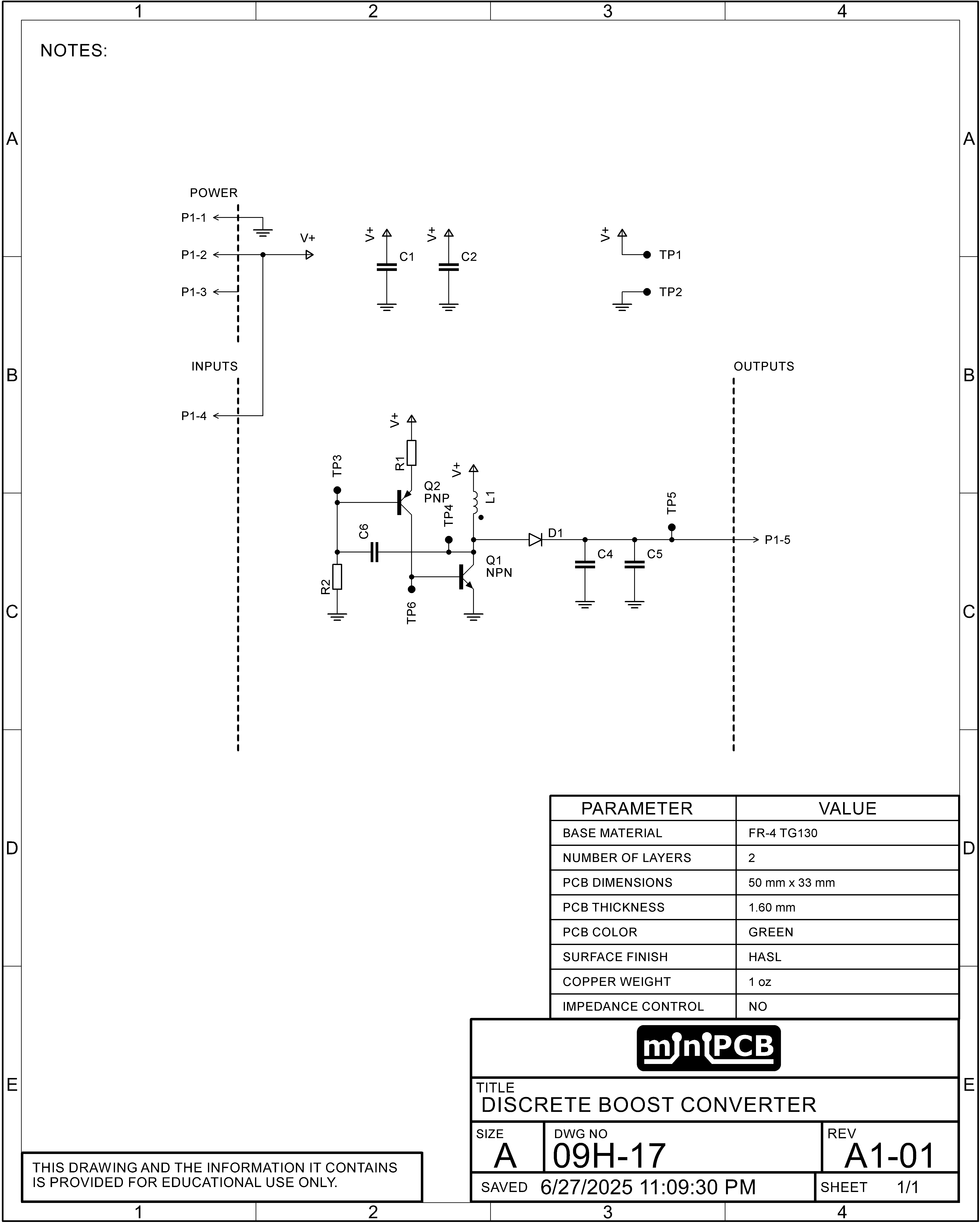

Schematic

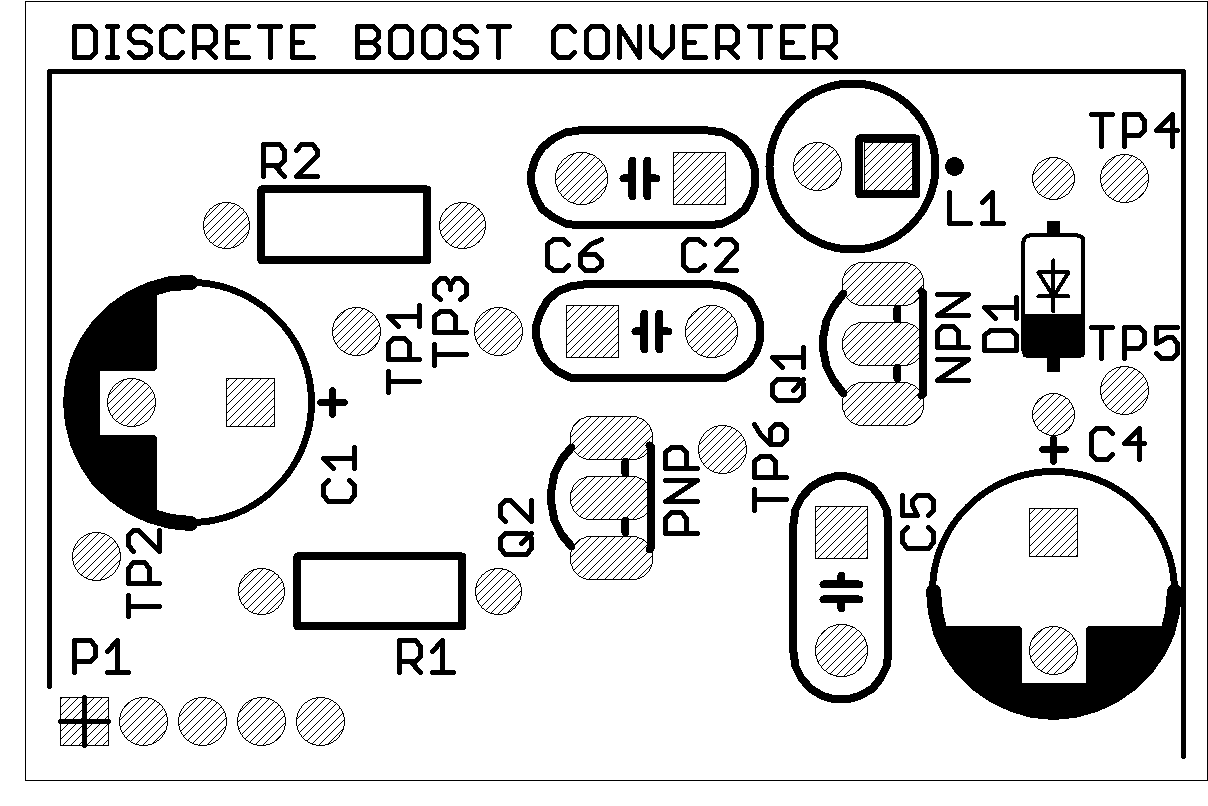

Board Layout
Coming Soon
We are working on additional resources for this PCB. Please check back later!
Coming Soon
We are working on additional resources for this PCB. Please check back later!
